ELECTRICAL WIRE CAPS For Quick Connection

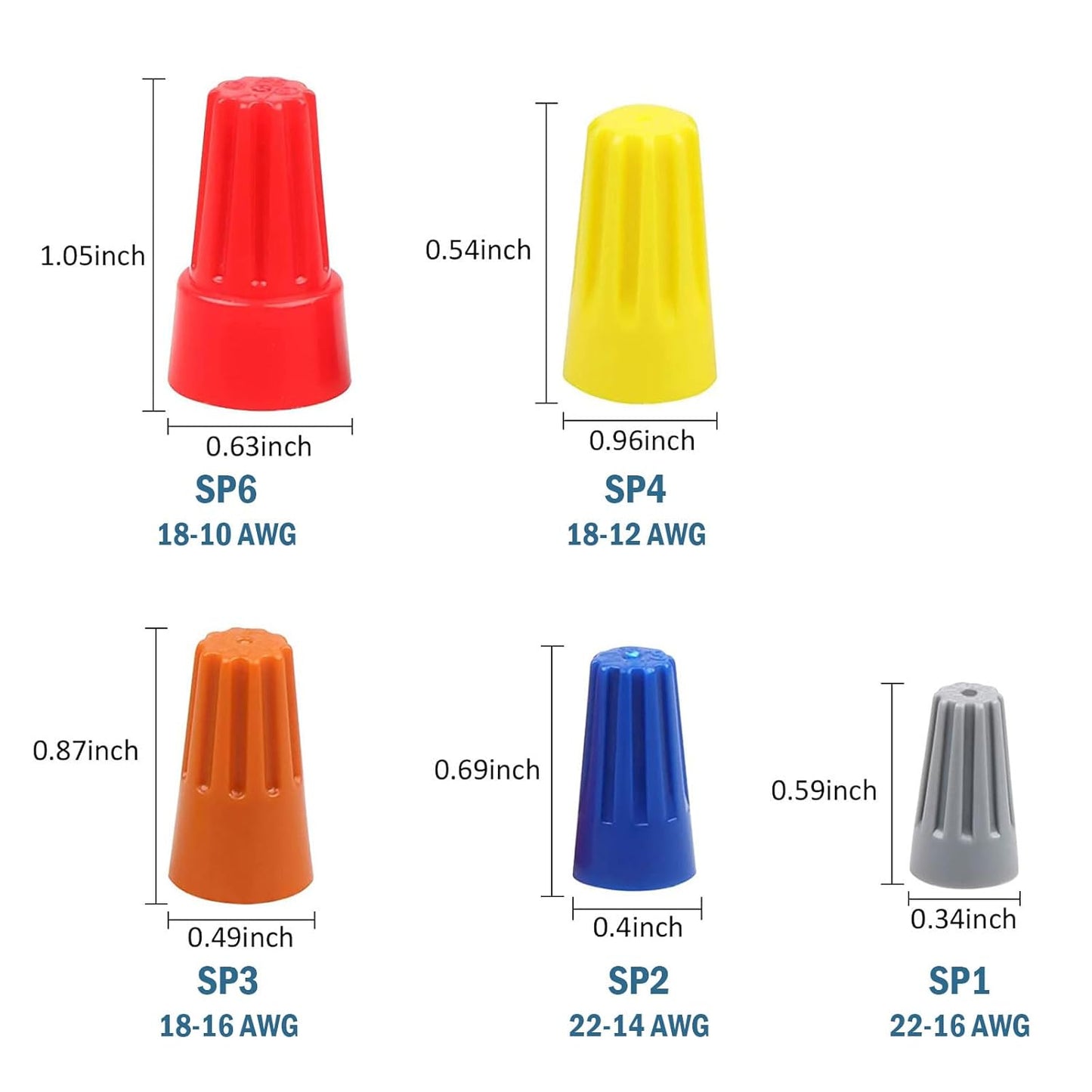

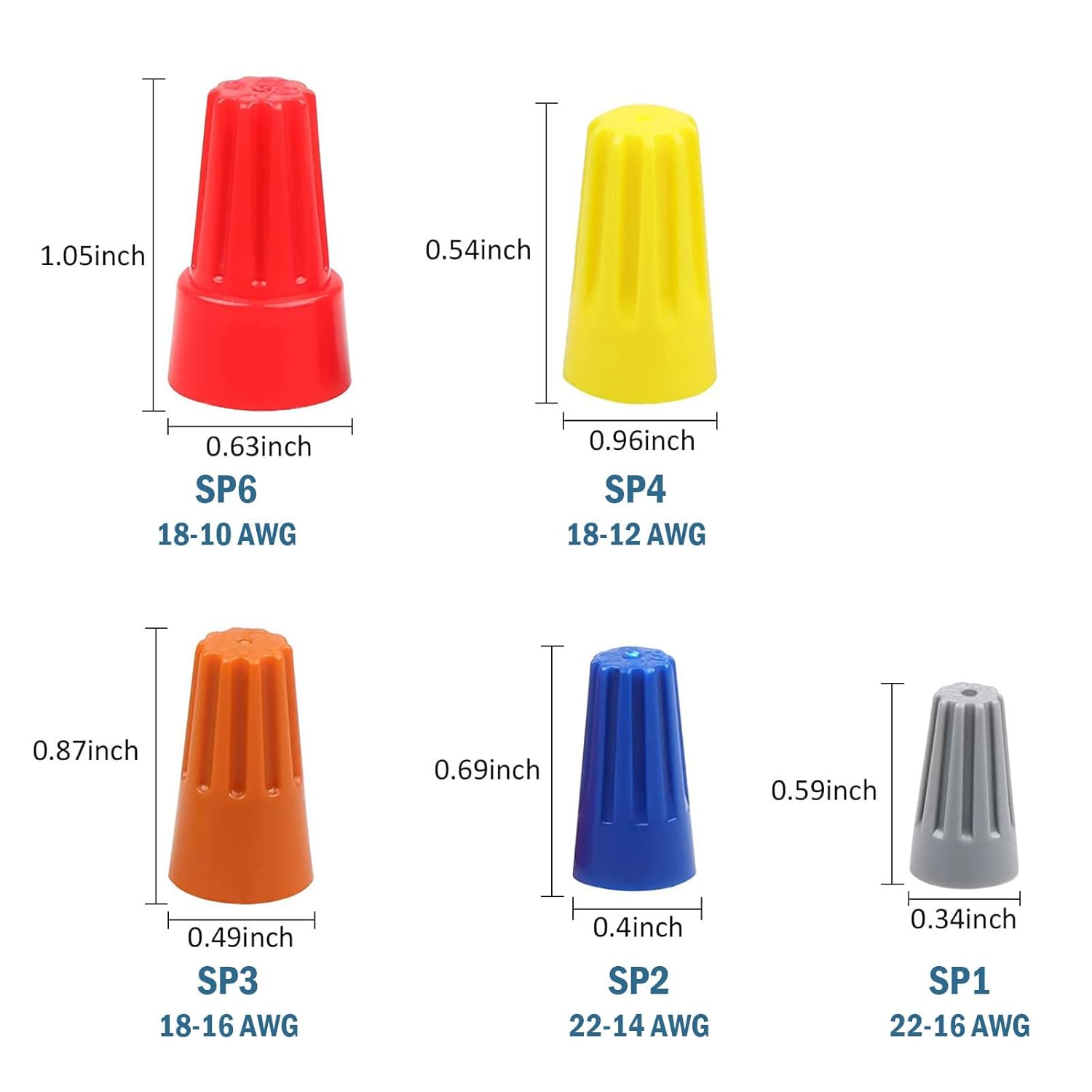

SP4-Yellow Spiral Plastic Crimping Cap

Wire combination range: min: 2.5x1+0.75x1 ~ max: 2.5x4+0.75x1

Bell mouth outer diameter :13.7mm

Bell mouth inner diameter :11.0mm

Overall height :24.5mm

Single weight :1.84g

Specification: 100Pcs

Voltage: Rated at 600V Max

Temperature: Rated at 221°F (105°C) maximum

Material: PP、 copper

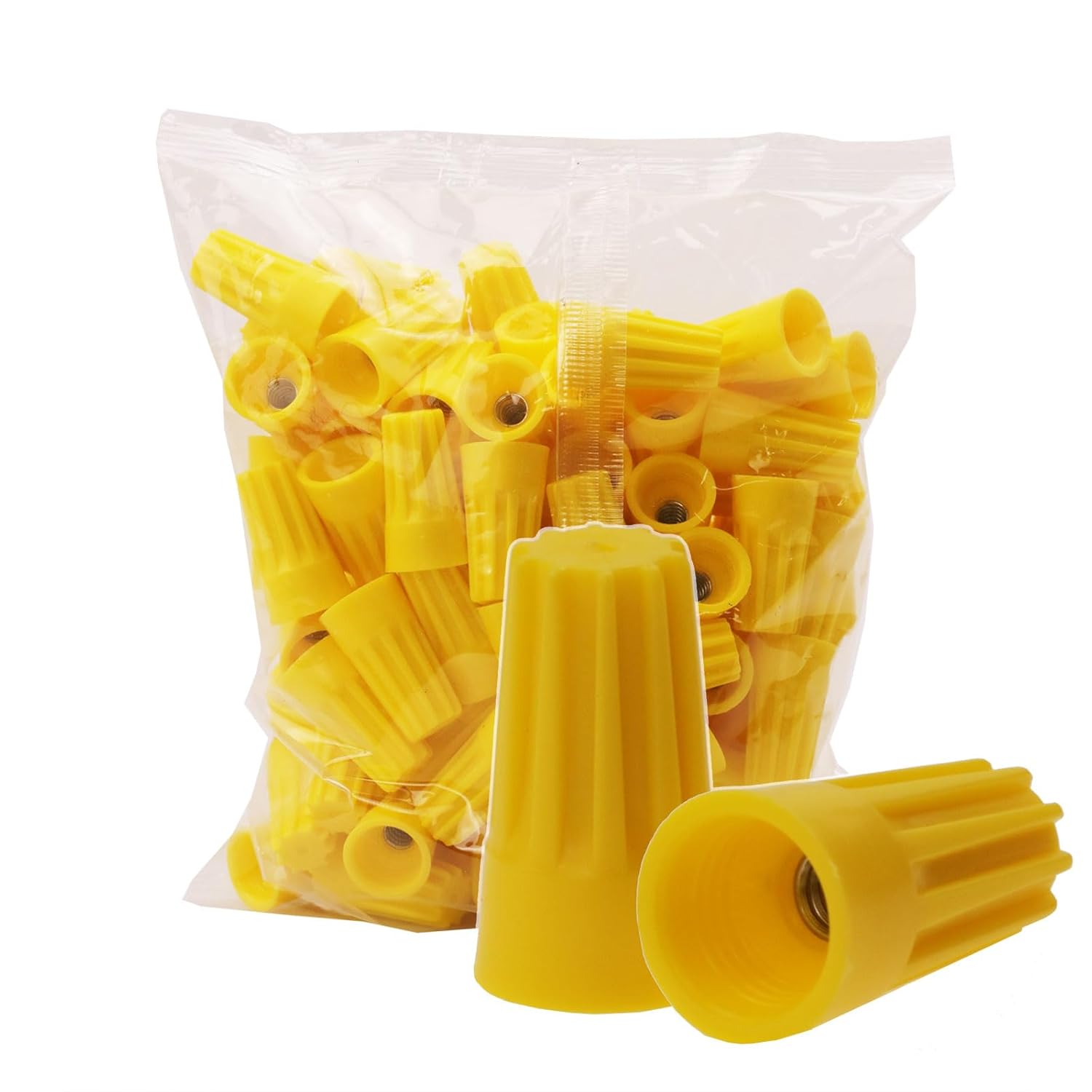

Package Include: 100pcs Electrical Wire Connectors Screw Terminals

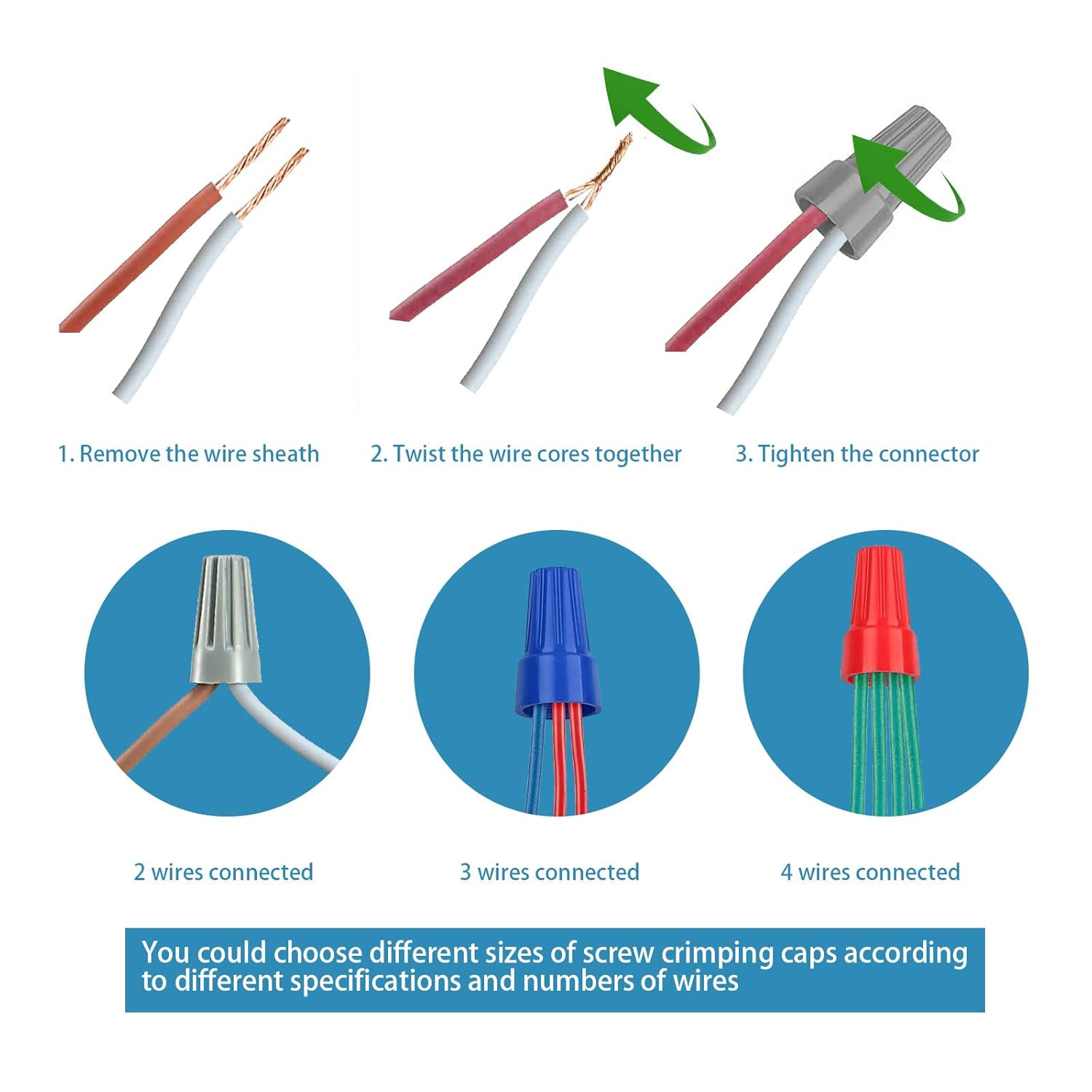

Four simple steps Easy to operate

Step 1: Prepare the crimping cap and stripped wire

Step 2: Merge the stripped wires and tighten the wire heads

Step 3: Insert the wire and rotate the crimping cap clockwise

Step 4: The connection is complete

Have you ever had any of these troubles?

Leakage, low insulation performance, long placement time, reduced viscosity.

Spiral Plastic Crimping Cap is the best choice for you.

Wire Connector Screw terminals have the following advantages

1. No cracks in crimping, not easy to fall off

Built-in extended aluminum tube, increase the conductive area, and the crimping line is tight.

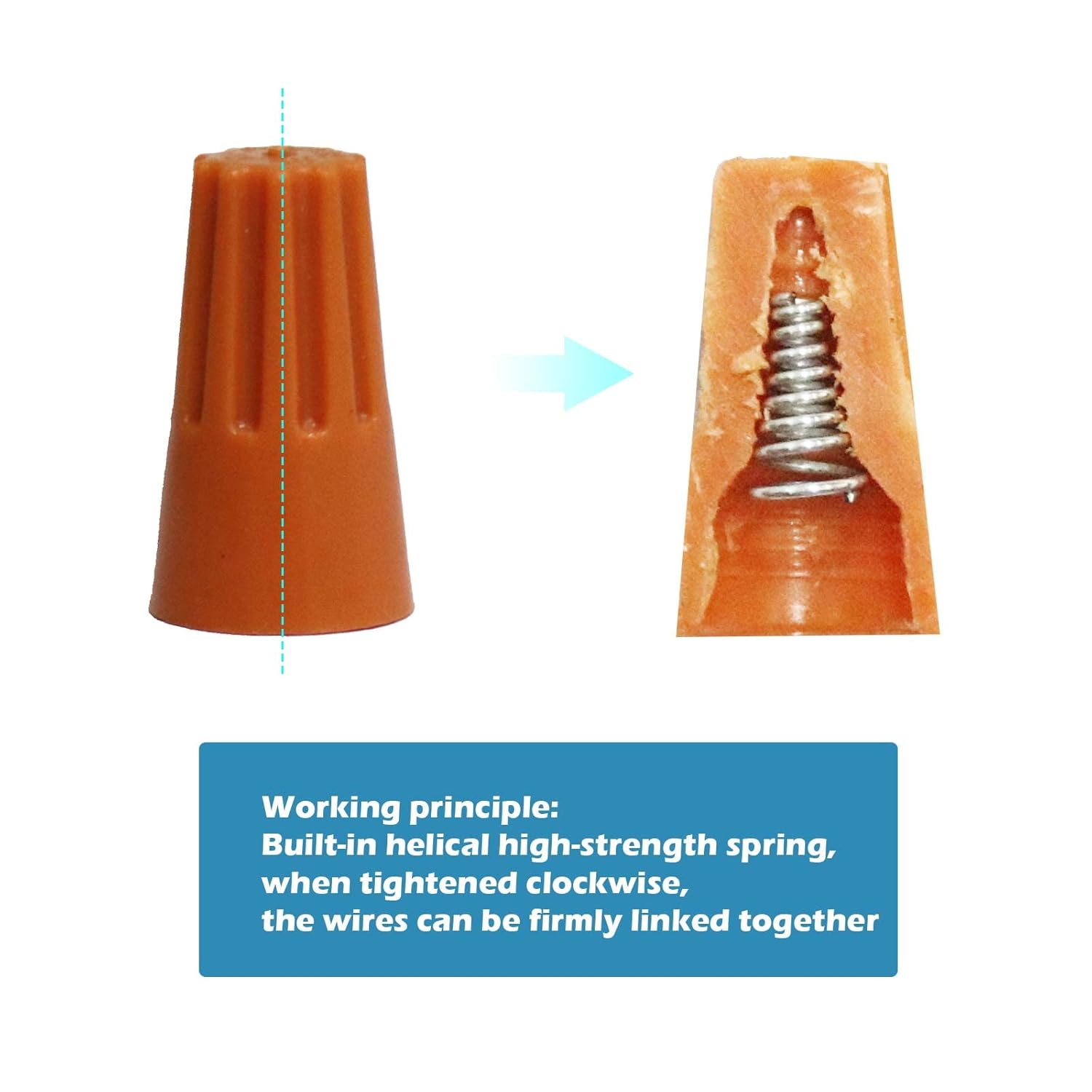

2. Carbon steel springs are tinned

The internal spring-loaded design makes the wiring firm, safe and durable.

3. PP nylon insulating flame retardant

The insulating flame retardant fire is extinguished instantly, and it will not be burned when it

encounters an open flame.

4. Quick wiring is safe and convenient

Peel off the shell and insert the screw cap, which saves time and effort for rotary locking, and can

be used to tighten soft and hard wires.

5. Flexible and hard wires are universal

Easy wire access to the port for easy wiring (RV) multi-strand hard wire (BVR) multi-strand

flexible wire
